Poylester Screen Printing Mesh

paiou supply 100% polyester mono filament screen printing mesh with smooth and clean surface Widely used in Textile printing, Garment printing, T-shirt Printing, Ceramic printing, Glass printing, Medical equipment printing, PCB printing, solar cells printing etc

Best Quality
Excellent service

Get a quote

Category: Screen Printing Mesh

Tags: Poylester Screen Printing Mesh

Products Description

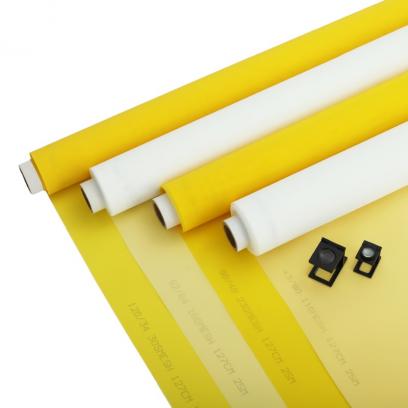

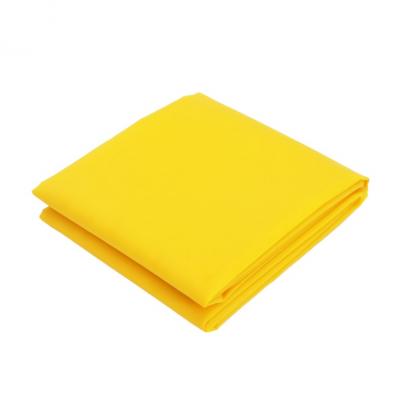

PAIOU supply 100% Mono filament polyester Screen Printing Mesh, which is made of single-strand threads with smooth and clean surface. It is also known as PET Mesh, DPP polyester Mesh, silk Screen Printing Mesh, screen printing fabrics, bolting cloth, etc. With its characteristics of high tensile and low elongation, they are excellent for screen printing process.

PAIOU adopts high-precision imported steel reed to ensure the consistency of screen opening and avoid inaccurate printing caused by the screen deformation during screen printing.

We use imported yarns and national yarns to weave Mesh. The imported yarns usually be used for higher and thinner Mesh(Swiss and Japan yarns), such as 100T-180T.

PAIOU could supply ISO Certificates, FDA, MSDS, and other certificates requested by customers.

Basic specifications:
Material: 100% polyester mono filament yarn
Temperature for continuous operation: 120°C
Max temperature: 195°C
Mesh counts: 6T-180T (15mesh - 460mesh)
Width: 127CM, 165CM, 260CM, 330CM, 365CM
Length: 30m-80m, or standard roll length 30m, 50m, 30yards, 50yards, 60yards etc.

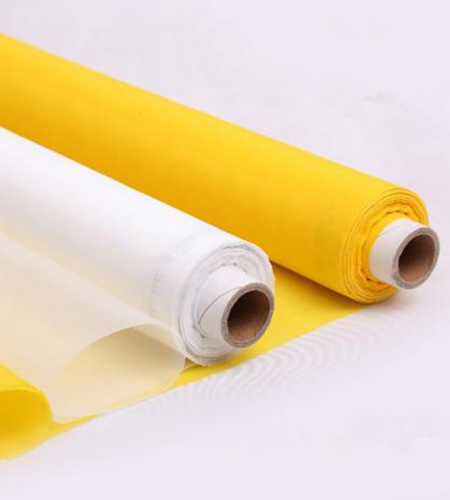

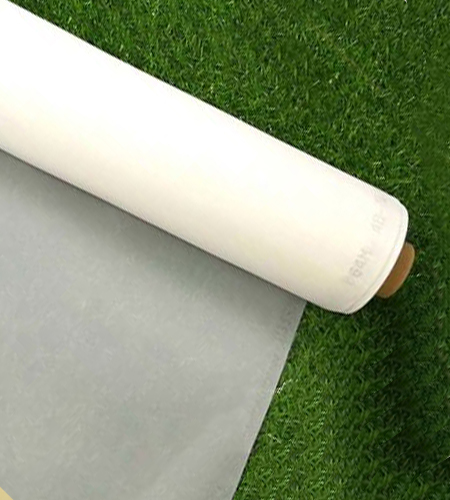

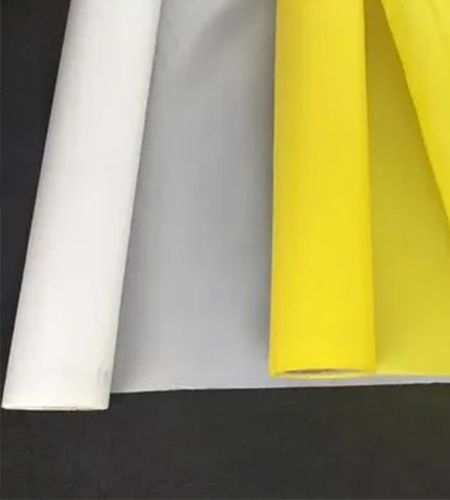

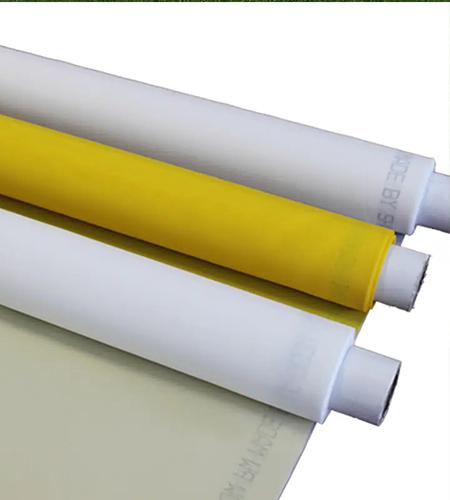

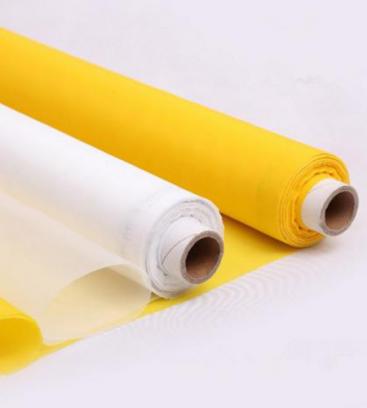

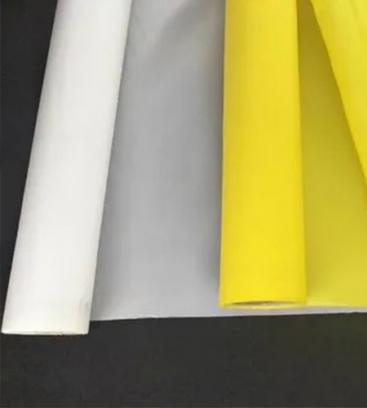

Color: White, Yellow are available

Products Specification

PAIOU 100% POLYESTER SCREEN PRINTING MESH SPECIFICATIONS
MESH CODE	MESH COUNT		THREAD DIAMETER	OPENING	OPEN AREA	THICKNESS	THEORETICAL INK VOLUMEg/m²
MESH CODE	/CM	/INCH	Micron	μm	%	μm	THEORETICAL INK VOLUMEg/m²
6T-400	6	15	400	1300	65	790	560
7T-350	7	18	350	1067	55	585-598	389
8T-300	8	20	300	970	58	550-580	406
8T-350	8	20	350	950	56	575-595	395
10T-250	10	25	250	743	55	495	274
12T-140	12	30	140	686	68	277	189
12T-250	12	30	250	578	48	495	239
16T-100	16	40	100	535	72	169	126
16T-120	16	40	120	515	65	225-230	147
16T-150	16	40	150	461	58	238	139
16T-200	16	40	200	403	44	329-341	151
17-180	17	45	180	410	53	255-275	137
20T-80	20	55	80	378	68	125-140	125
20T-100	20	50	100	380	62	170	105
20T-150	20	50	150	354	50	255	126
21T-80	21	55	80	378	68	130	125
24T-100	24	60	100	301	56	170	95
24T-120	24	60	120	282	49	204	99
24T-150	24	60	150	273	42	250	100
28T-80	28	70	80	263	58	136	79
28T-100	28	70	100	244	50	170	85
28T-150	28	70	150	240	55	198	70
29T-120	29	73	120	213	41	240	102
32T-64	32	80	64	236	61	109	67
32T-80	32	80	80	221	53	136	73
32T-100	32	80	100	202	44	170	75
32T-120	32	80	120	183	36	204	74
34T-100	34	86	100	184	42	170	71
36T-80	36	70	100	202	51	148	70
36T-90	36	80	100	185	45	160	65
36T-100	36	90	100	180	41	170	60
39T-55	39	100	55	191	60	94	56
39T-64	39	100	64	183	54	109	59
39T-71	39	100	71	176	50	121	61
39T-80	39	100	80	168	45	136	62
39T-100	39	100	100	149	35	170	60
43T-55	43	110	55	176	58	98	56.8
43T-64	43	110	64	160	51	109	55
43T-80	43	110	80	145	41	136	56
47T-55	47	120	55	150	53	94	50
47T-64	47	120	64	143	40	90	48
48T-70	48	125	70	135	42	121	51
53T-45	53	135	45	148	52	100	47
53T-48	53	135	48	140	55	90	49.5
53T-55	53	135	55	127	48	94	45
54T-64	54	137	64	118	42	109	45
54T-71	54	137	71	112	37	115	45
59T-45	59	150	45	124	45	85	29
59T-48	59	150	48	121	51	85	43.4
59T-55	59	150	55	114	48	108	49.7
59T-64	59	150	64	105	39	119	48.4
62T-48	62	160	48	115	48	80	41
62T-55	62	160	55	103	41	94	38
62T-64	62	160	64	95	34	109	37
64T-55	64	162	55	96	39	94	36
64T-64	64	162	64	88	32	109	35
68T-55	68	173	55	92	39	102	39.8
72T-48	72	180	48	91	43	89	38.3
72T-55	72	180	55	84	37	100	37
77T-48	77	195	48	82	40	89	35.6
77T-55	77	195	55	75	33	108	35.6
80T-48	80	200	48	77	38	89	33.8
90T-40	90	230	40	68	38	68	26
90T-48	90	230	48	62	32	92	29.4
100T-40	100	255	40	60	36	72	25.9
110T-40	110	280	40	51	31	79	24.5
120T-31	120	305	31	52	39	53	20.7
120T-34	120	305	34	46	31	50	18.4
120T-40	120	305	40	43	27	72	19.4
130T-34	130	330	34	36	26	58	15
140T-31	140	350	31	42	34	61	20.7
140T-34	140	350	34	38	28	67	18.8
150T-31	150	380	31	37	30	60	18
150T-34	150	380	34	33	28	62	14.9
165T-31	165	420	30	30	25	56	14
165T-27	165	420	27	34	22	52	18
180T-27	180	460	27	27	26	44	11.6
D (DENIER) =MICRON 9D=31MICRON 12D=34MICRON 16D=40MICRON 22D=48MICRON 30D=55MICRON 40D=64MICRON 50D=70MICRON 60D=80MICRON 80D=90MICRON 100D=100MICRON

Products Application

PAIOU Screen Printing Mesh widely used in Textile Printing, T-Shirt Printing, Glass Printing, Ceramics Printing, PCB printing, Solar Cells Printing, CD Printing, Glitter Printing, Packaging Printing, Keyboad Printing, Large Format Printing, Grafic Printing, Membrane Printing etc.
